Quick-release valve

The function of a quick-release valve (Fig. 23) is to rapidly exhaust air from the controlled device. It is normally located adjacent to the controlled device, rather than requiring exhaust air to return and exhaust through the control valve. This decreases release time.

Quick-release valve

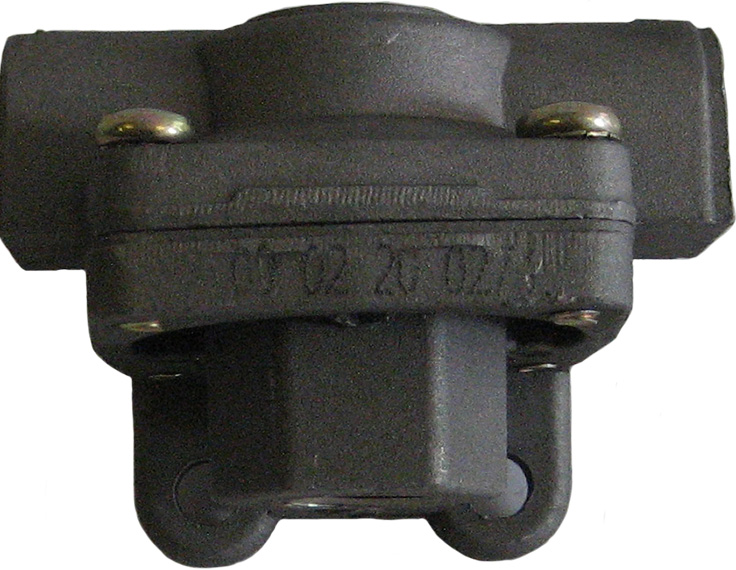

Figure 23. Quick-release valve
